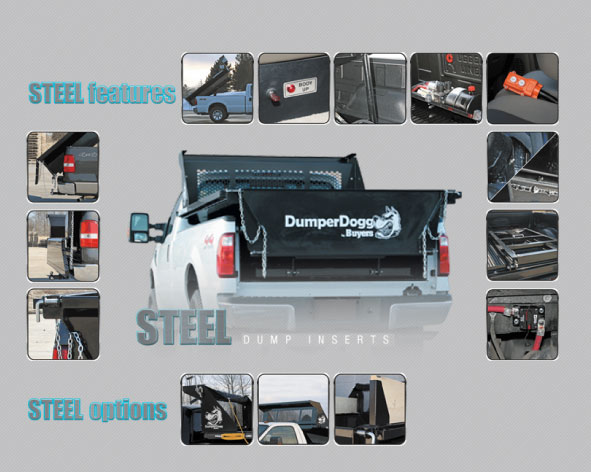

DumperDogg Dump Inserts

Steel Standard Features

  • Fits Most 8′ and 6′ Beds
  • Power Up and Power Down
  • 1.5Kw motor (3 HP max) for Hydraulic Pump
  • 2 cu yd cap.(8′); 1.5 cu yd cap.(6′)
  • Payload cap.: 6,000 lbs. max*
  • Dump Angle 0°– 45°
  • 12 Gauge Steel Material
  • Black Powder Coat Finish
  • Includes Manual Safety Bar
  • Tethered Control Box with 9′ Cord
  • Grease Fittings/Holes in Pivot Points
  • Includes Body-Up Indicator Kit (SK10)
  • 20′ Battery Cables
  • Tailgate Chains
  • Black Powder Coat Structural Steel Frame
  • Double Pivoting and Removable Steel Tailgate
  • 8 Stake Pockets
  • 3/4″ Diameter Tailgate Hinge Pins

Optional Features

  • 5531010 – Bolt-On Cab Guard for 8′ Steel Insert & 6′ Steel Insert
  • 5531020 – Wall Extension Bracket Kit for 8′ Steel Insert & 6′ Steel Insert
    (hardware & 2 brackets per side), accepts one 2″ x 12″ per side**
  • DTR5508 – Roll Tarp Kit, 5.4′ x 9.5′ for 5531006***
  • DTR5511 – Roll Tarp Kit, 5.4′ x 11.5′ for 5531000***

Part Numbers

  • 5531000 – 8′ Steel Insert
  • 5531006 – 6′ Steel Insert



* weight limits not to exceed manufacturer’s gross vehicle weight limits
**for use with 5531000, 5531006, must have 5531010 installed (2″ x 12″ not included)
***must be used with 5531010
